CK236.011
R 2,087.25

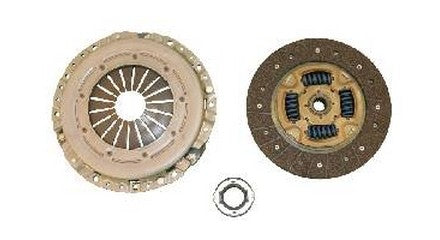

Clutch Kit
Brand: LMB
Disc Outer Diameter (mm): 236
Cover PCD Diameter (mm): 256
Disc Spline Number: 20
Spline Max Diameter (mm): 22.5
Disc Spring Number: 4
Clutch Bearing CB32.10 Splines 22.5mm x 20 Flywheel Recess 12mm
Suitable for the following applications
-
HYUNDAI: Accent IV (RB) 2010- - 1.6 CRDi 94kW, 100 kW D4FB
-
HYUNDAI: Elantra V (MD UD) 2011-2017 - 1.6 CRDi 94KW
-
HYUNDAI: i20 (PB PBT) 2008-2015 - 1.4 CRDi 55kW 66kW, 1.6 CRDi 85kW 94kW D4FB & D4FC
-
HYUNDAI: i20 (GB) 2015- - 1.4 CRDi 66kW D4FC
-
HYUNDAI: i30 (FD) 2007-2012 - 1.6 CRDi 66KW 85KW 94KW D4FB
-
HYUNDAI: i30 (GD) 2012-2017 - 1.4 CRDi 66kW, 1.6 CRDi 81kW 94kW 100kW D4FB
-
HYUNDAI: ix 35 (LM) 2010-2016 - 1.7 CRDi 85kW D4FD
-
KIA: Carens III (UN) 2006-2013 - 1.6 CRDi 85kW 94kW D4FB
-
KIA: Carens IV (RP) 2013- - 1.7 CRDi 85kW D4FD
-
KIA: Pro Cee D (JD) 2013- - 1.4 CRDi 66KW,1.6 CRDi 85KW 94KW D4FB & D4FC
-
KIA: Pro Cee D (ED) 2008-2013 - 1.6 CRDi 66KW 85KW 94KW
-
KIA: RIO IV (YB, SC, FB) 2017- - 1.4 CRDi 55kW 66kW D4FC
-
KIA: Rio III (UB) 2011- - 1.4 CRDi 66KW D4FC
-
KIA: Soul I (AM) 2009-2014 - 1.6 CRDi 85KW 94KW
-
KIA: Soul II (PS) 2014- - 1.6 CRDi 93KW 94KW 100KW D4FB
-
KIA: Sportage (SL) 2009-2016 - 1.7 CRDi 85kW D4FD
Manufacturers
-
Luk: 624 3763 00
-
Luk South Africa: 624 3763 00
-
Sachs: 3000 951 556
Warranty Information:
All clutches carry a general warranty guaranteeing to be free from manufacturing defects as well as a 12 month warranty when fitted by an accredited professional
